Flow Through Filter

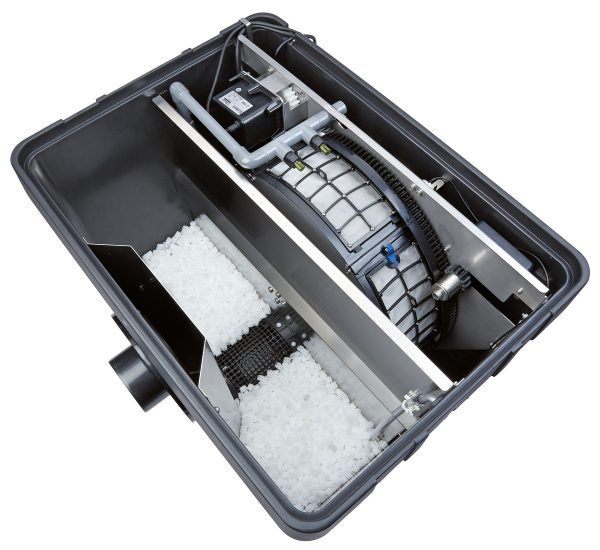

ProfiClear Premium Compact M Pumped OC

£2,999.99

  • Professional compact drum filter with minimal space requirements
  • Moving bed system for optimal water movement and cleaning
  • Automatic coarse debris extraction and flushing
  • Also available as a gravity-fed system – Please get in touch to discuss this option

Requires suitable Water Pump, Air Pump, and UVC Clarifier, depending on your specific requirements. Please don’t hesitate to get in touch, or come down to see us to discuss this.

Categories: , Tag:

Description



  • Suitable for ponds up to 80.0 m3
  • Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit
  • Inexpensive alternative for smaller ponds, particularly koi ponds
  • The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
  • Available in the pump-fed principle and in the gravity-fed principle
  • Conveniently control all settings via an app with connection options for the OASE Control system
  • With the Moving Bed System for optimal water movement and water cleaning
  • High separation efficiency due to deep filtration of up to 60 μm
  • Hel-X 13 filter medium with significantly enlarged surface area for effective decomposition of nutrients and pollutants
  • The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required
  • Innovative and reliable product »made in Germany« (except pressure pump)
  • Particularly quiet operation thanks to extensive noise insulation
  • Individually removable sieve elements (no tools required) and free-wheel function
  • Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
  • Minimal install height for full flexibility with gravity-fed systems

Technical Data

Power consumption, cleaning W 870
Net weight kg 76.50
Guarantee (+ request guarantee) Years 2 + 1
Biological filter surface m2 38.2
Biological filter surface protected m2 32.2
Control unit Microcontroller
Temperature display Digital
Coarse debris extraction µm 80
Number of nozzles/rinse quantity 2 x 3.5 l/min
Scavenging pump 4 bar
Automatic rinsing system manually, Sensor, Time interval
Number of sieve elements Units 6
Filter intake surface cm2 1135
Inlet connections mm 50
Inlet connections 1 x 2″ + Bitron
Number of outlets Units 1
Outlet connections DN 110
Sludge discharge connections DN 75, DN 110
Flush trough connection DN 110
Connection to AquaOxy 2000, Bitron C 72 – 110 W, Bitron Eco 120 – 240 W
Min. flow rate l/h 7500
Max. flow rate l/h 12500
Installation height above water level cm 32.0
Type of use Pump fed system
Other Aeration pre-installed
incl. 40l Hel-X 13 Biomedia
Pollutant discharge incl. slide valve
