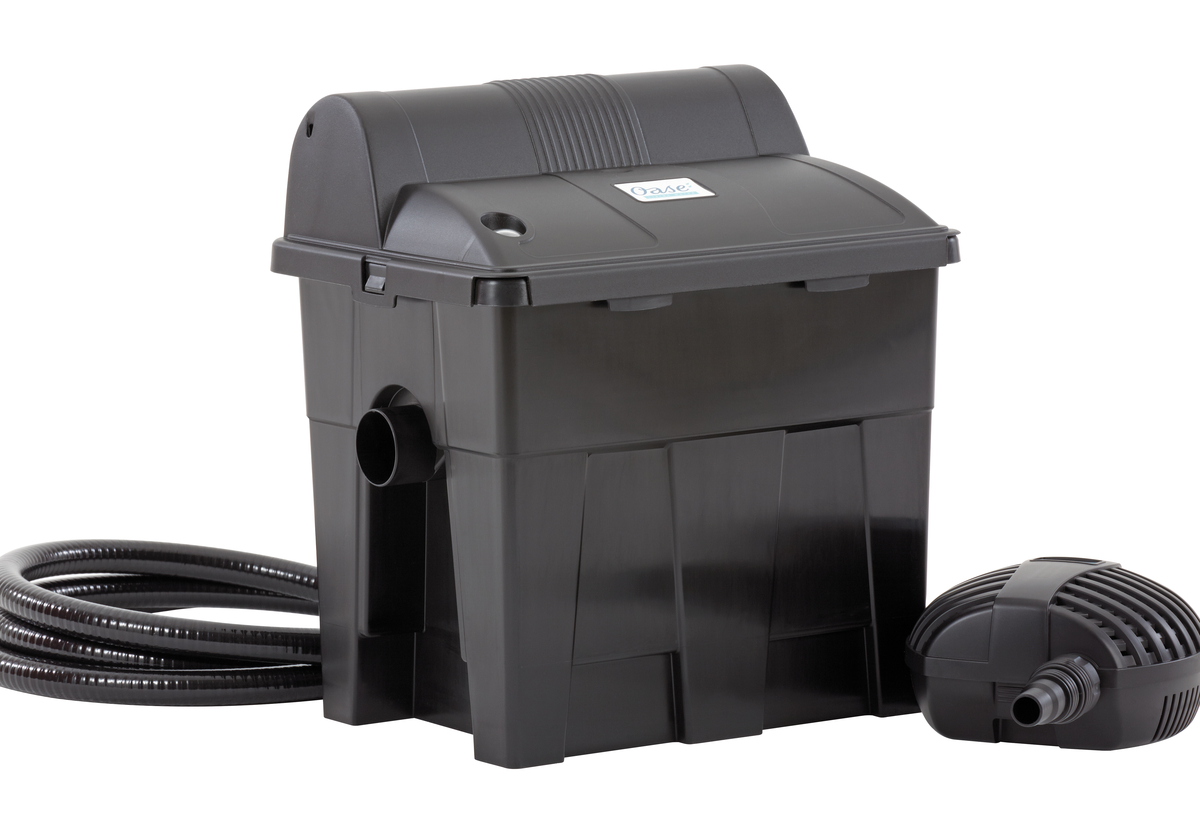

Flow Through Filter

BioSmart Set 7000

£254.99

  • Reliable and flexible implementation – entry-level flow-through filter
  • Easy maintenance thanks to cleaning handles and bottom drain
  • Pollutant level indicator and temperature indicator for convenient filter monitoring
Categories: , Tag:

Description



  • Incl. OASE Clear Water Guarantee
  • Oxygen enrichment through special water channelling
  • Cleaning handles for convenient maintenance
  • Including displays for pollutant level and water temperature
  • Sludge drain for easy removal of coarse debris
  • Easy to conceal; the filter can be recessed into the ground to ⅓ of its height
  • Suitable for ponds up to 7.0 m3
  • Included in the scope of delivery: 3 m 3/4″ (19 mm) hose and filter pump 2500: 40 W; 2500 l/h Qmax; 2.2 m Hmax
  • Combination of mechanical biological cleaning and effective UVC technology

Technical Data

Net weight kg 5.90
Rated voltage 230 V / 50 Hz
Power consumption UVC W 12
Power cable length UVC m 3.00
Guarantee Years 2
UVC power W 9
Number of filter foams, total Units 3
Number of blue filter foams Units 2
Number of red filter foams Units 1
Temperature display Yes
Inlet connections mm 19 / 25 / 32 / 38
Inlet connections ¾”, 1″, 1 ¼”, 1 ½”
Outlet connections DN 50
Connections, sludge discharge mm 38
Sludge discharge connections 1 ½”
Corresponding filter/watercourse pump Filter pump 2500
Power consumption pump W 40
Max. flow rate l/h 2750
Power cable length pump m 10.00
Suitable for ponds up to max. m3 7.0
Suitable for ponds with fish stock m3 3.5
