Flow Through Filter

BioSmart Set 36000

£757.49

  • Reliable and flexible implementation – entry-level flow-through filter
  • Easy maintenance thanks to cleaning handles and bottom drain

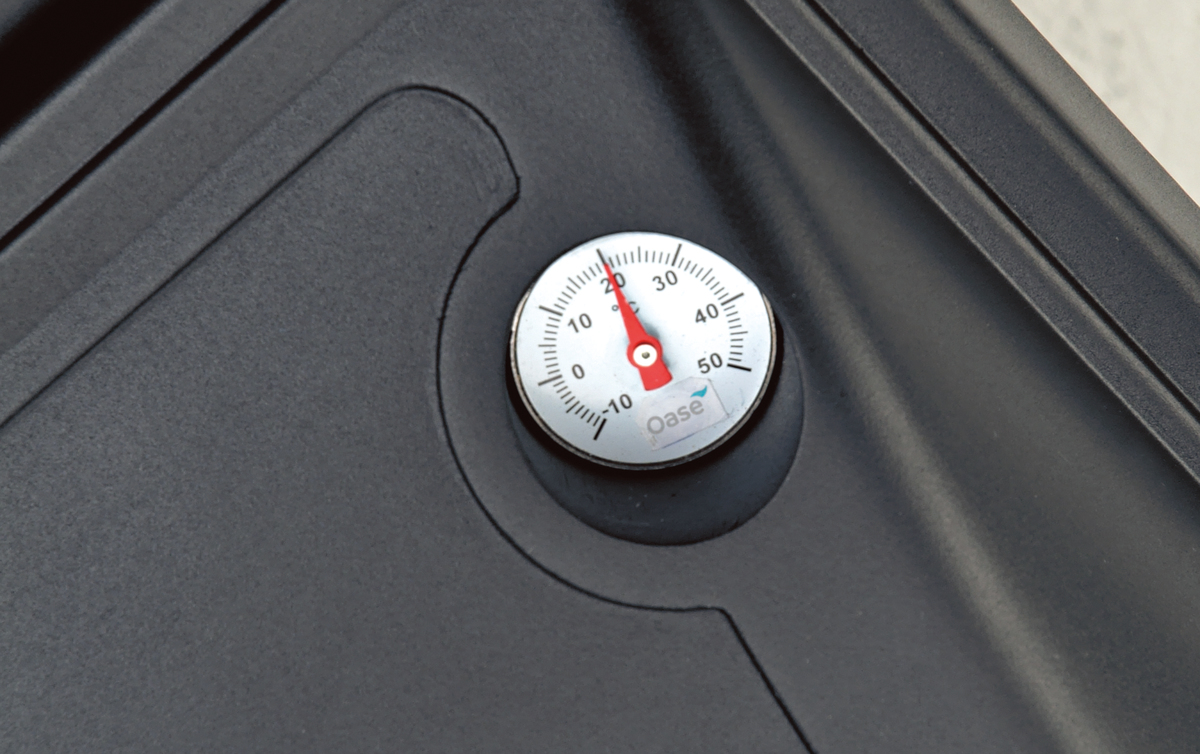

  • Pollutant level indicator and temperature indicator for convenient filter monitoring
Categories: , Tag:

Description



  • Incl. OASE Clear Water Guarantee
  • Oxygen enrichment through special water channelling
  • Cleaning handles for convenient maintenance
  • Including displays for pollutant level and water temperature
  • Sludge drain for easy removal of coarse debris
  • Easy to conceal; the filter can be recessed into the ground to ⅓ of its height
  • Filters and pumps are optimally matched
  • Suitable for ponds up to 36.0 m3
  • Combination of mechanical biological cleaning and effective UVC technology
  • Incl. 100 ml BioKick Filter Starter* only BioSmart Set 18000 – /36000
  • Included in the scope of delivery: Vitronic UVC 36 W; 5 m 1 ½” (38 mm) hose and AquaMax Eco Classic 11500: 100 W; 11000 l/h Qmax; 3.3 m Hmax

Technical Data

Net weight kg 21.50
Rated voltage 220 – 240 V / 50/60 Hz
Power consumption UVC W 36
Power cable length UVC m 5.00
Guarantee Years 2
UVC power W 36
Number of filter foams, total Units 9
Number of blue filter foams Units 4
Number of red filter foams Units 4
Number of green filter foams Units 1
Inlet connections mm 19 / 25 / 32 / 38 / 50
Inlet connections ¾”, 1″, 1 ¼”, 1 ½”, 2″
Outlet connections DN 75
Sludge discharge connections DN 50
Power consumption pump W 100
Max. flow rate l/h 11500
Power cable length pump m 10.00
Suitable for ponds up to max. m3 36.0
Suitable for ponds with fish stock m3 18.0
Suitable for ponds with koi m3 9.0
